Feature:
1. Hold Many Fingerprints: Fingerprint scanner can hold 10 fingerprints, set fingerprints for multiple accounts, set fingerprints for each family member using a separate account, and automatically log in to their own accounts through fingerprints.
2. 360 Degree Auto Calibration: 360 degree auto calibration and recognition function, press the correctly registered finger at any angle on the module to complete the comparison.
3. Multifunctional: Multi functional design, fingerprint collection, fingerprint registration, fingerprint matching and fingerprint search can be done independently.
4. Wide Application: Mini fingerprint reader is used for fingerprint access control machine, fingerprint root search, fingerprint attendance machine, fingerprint storage cabinet, one touch automatic operating, fingerprint printing, fingerprint lock, fingerprint security.
5. Compact Structure: Computer fingerprint reader is compact, easy to carry and store, low power consumption, universal interface, high reliability and easy to operate.
Specification:

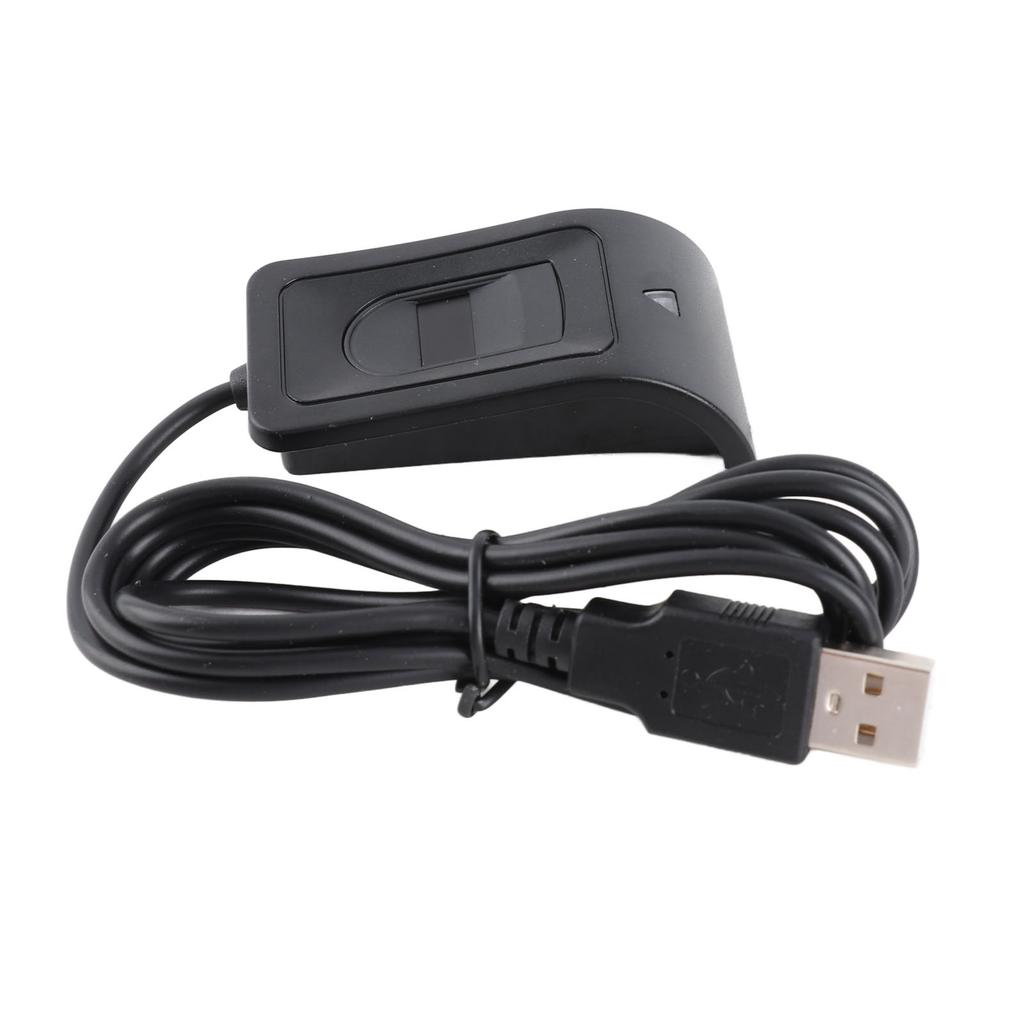

Item Type: Fingerprint Key Reader
Material: ABS
CPU: 144Hz main frequency, 1M Bits Flash Memory, 128KB SRAM
Fingerprint Capture: Capacitive capture
Fingerprint Image Size: 96 x 112 (pixels), 508 DPI
Fingerprint Registration Capacity: 10 by default, expandable to 5000
False Acceptance Rate (FAR): <0.001percent (Security Level 3)
Rejection Rate (FRR): <0.1percent (Security Level 3)
Matching Method: 1:N and 1:1 matching
Fingerprint Template Size: 570 bytes Byte
Security Level Setting: Level 1 to Level 5 configurable, factory set value: Level 3
Processing Speed:
Fingerprint Feature Extraction Time <0.45 seconds
1:N matching time (for 3000 full registrations) <1.5 seconds
Communication Interface: UART, 3.3V TTL level or USB communication
Serial Communication Parameters:
No Parity Parity = NONE, 1 stop bit Stop Bit = 1
No Flow Control = NONE
Baud rate of 9600, 19200, 38400, 57600, 115200 (bps)
Factory Setting: 115200bps
Operating Voltage: vin voltage: DC5V
Operating Current: less than 30mA, peak less than 80mA (instantaneous current) when collecting fingerprints
Sleeping Current: less than 10uA working environment
Operating Temperature: 10 celsius 60 celsius
Applicable System: For Win System Only.
Package List:
1 x Fingerprint Key Reader
Note:
Not available for OS X system.
