Feature:
1. Support VGA, High Definition Multimedia Interface high-definition output display; support. AHD/TVI/CVI/CVBS/IP signal 5-in-1 access.
2. Support a variety of cloud technologies, network penetration, front?end docking, alarm information pushed to mobile phones, etc.
3. Supporting Web, CMS, central platform management software MYEYE, providing SDK development.
4. Support all kinds of mobile phones, pad remote monitoring (for IOS, for Android).
5. Remote access, with domain name service function (ARSP), one-click enable remote monitoring.
6. Standard coaxial control for easy back-end control front end.
7. Network mode supports "full Netcom", compatible with all major brands IPC, cross-network segment, same IP one-button network.
Specification:
Item Type: NVR
Color: Black
Material: Metal
Main Processor: Industrial Embedded Chip hi3520d V300
Codec Standard: H.264
Monitoring Quality: VGA, High Definition Multimedia Interface HD
Preview Capacity: 4 x 1080P (5 in 1)
Coding Capacity: 4 x 1080P (5 in 1)
Decoding Capacity: 4 x 1080P @ 15fps (5 in 1)
Coaxial: 4 x1080P
Mixing: 2 x 1080P (coaxial) + 2 x 1080P (network); 4 x 1080N (coaxial) + 4 x 960P (network);
Network: 16 x 1080P; 9 x 1080P; 16 x 960P; 4 x 5M
Motion Detection: 192 (16*12) detection areas can be set per screen; multi-level sensitivity can be set (local channel only)
Audio Compression: G.711A
Intercom: Support
Recording Mode: Manual > Alarm > Dynamic Detection > Timing
Local Playback: 1 Way 4M
Video Query: Time Point Search, Calendar Search, Event Search, Channel Search
Video Saving: Local Hard Disk, Network
Backup Method: Network Backup, USB Mobile Hard Disk, Usb Burning, Sata Burning

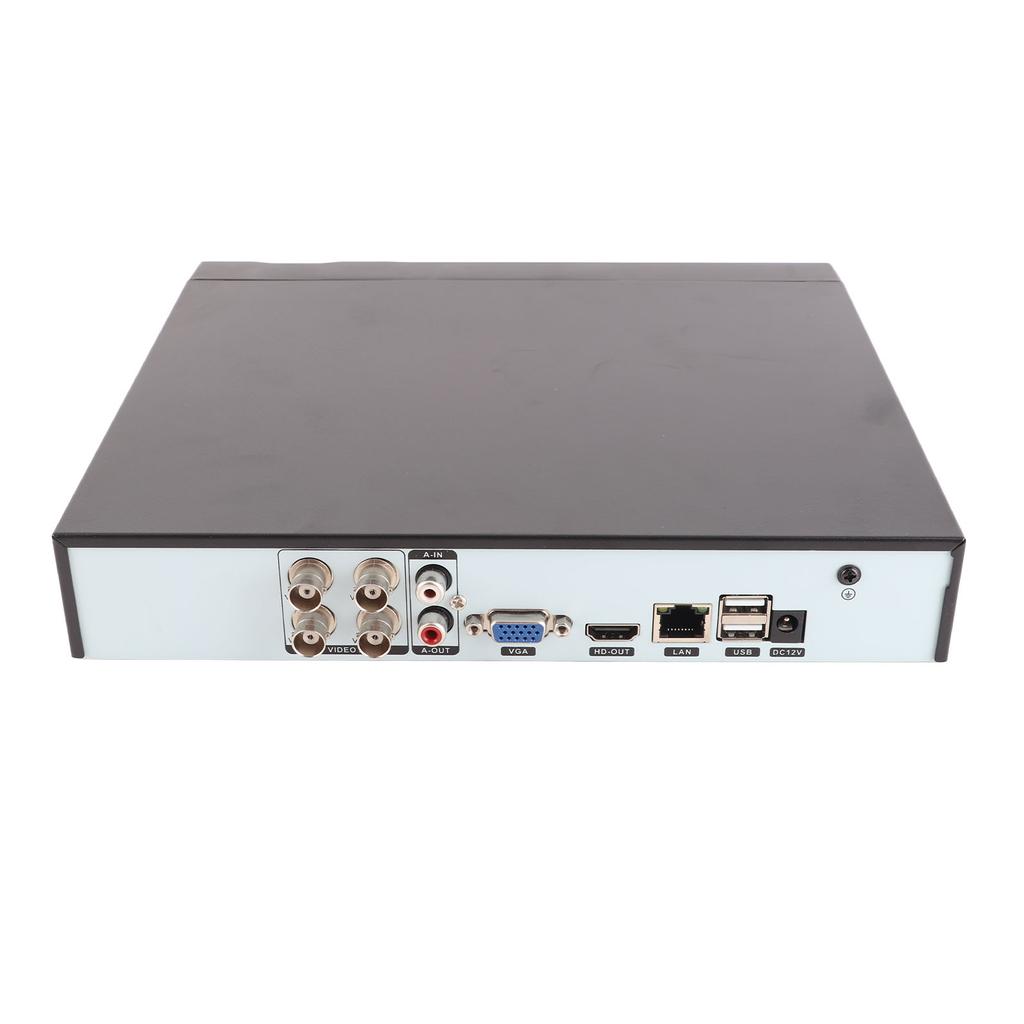

Video Intput: 4-Way BNC
Video Output: 1 Way VGA, 1 Way High Definition Multimedia Interface
Audio: I/O: 1/1
Alarm: I/O::0/0
Network Interface: 1 RJ45 10m/100m Adaptive Ethernet Port
Expanded Interface: 2 USB 2.0 Interfaces
Hard Disk Interface: 1 Sata Interface (maximum 8T Each)
Power: 12V/2A
Working Environment Temperature: 0 degrees C-+55 degrees C
Humidity: 10percent -90percent RH
Atmospheric Pressure: 86kpa-106kpa.
Package List:
1 x NVR1 x Mouse1 x Power Supply1 x Instruction Manual3 x Screw
Note:
