Features:

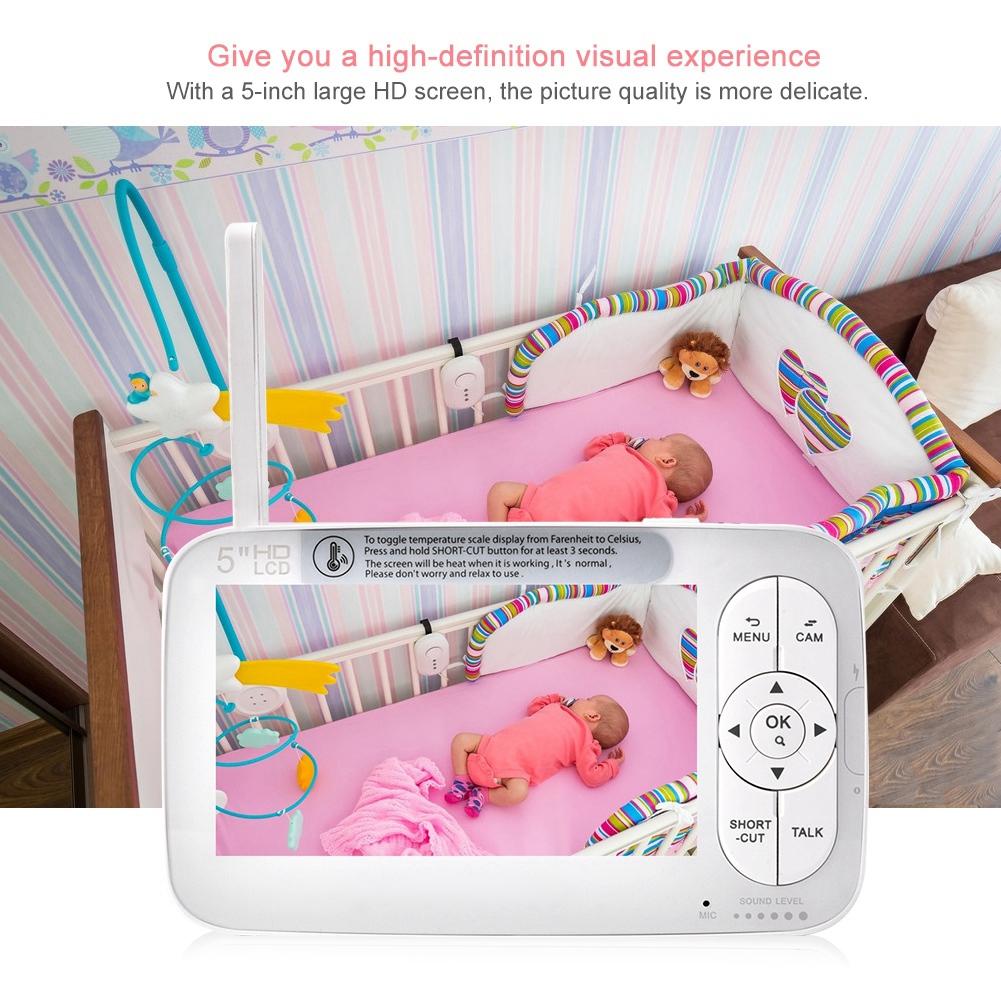

The image looks bigger and the image looks clearer. With a 5-inch 1280x720P/25fps large HD screen, the picture quality is more delicate, and it is bigger than the traditional baby monitor image, giving the baby more care.
Compared with the traditional 240P baby monitor, the clarity is at least 10 times higher, the image is more realistic, and the baby"s subtle changes are always felt. The cute design of the camera is more liked by the baby.
By controlling the upper, lower, left and right buttons of the screen, it is easy to realize the camera"s horizontal rotation from 0 to 355 degrees, and the vertical rotation from 0 to 70 degrees. The baby"s growth range is larger and can be easily observed.

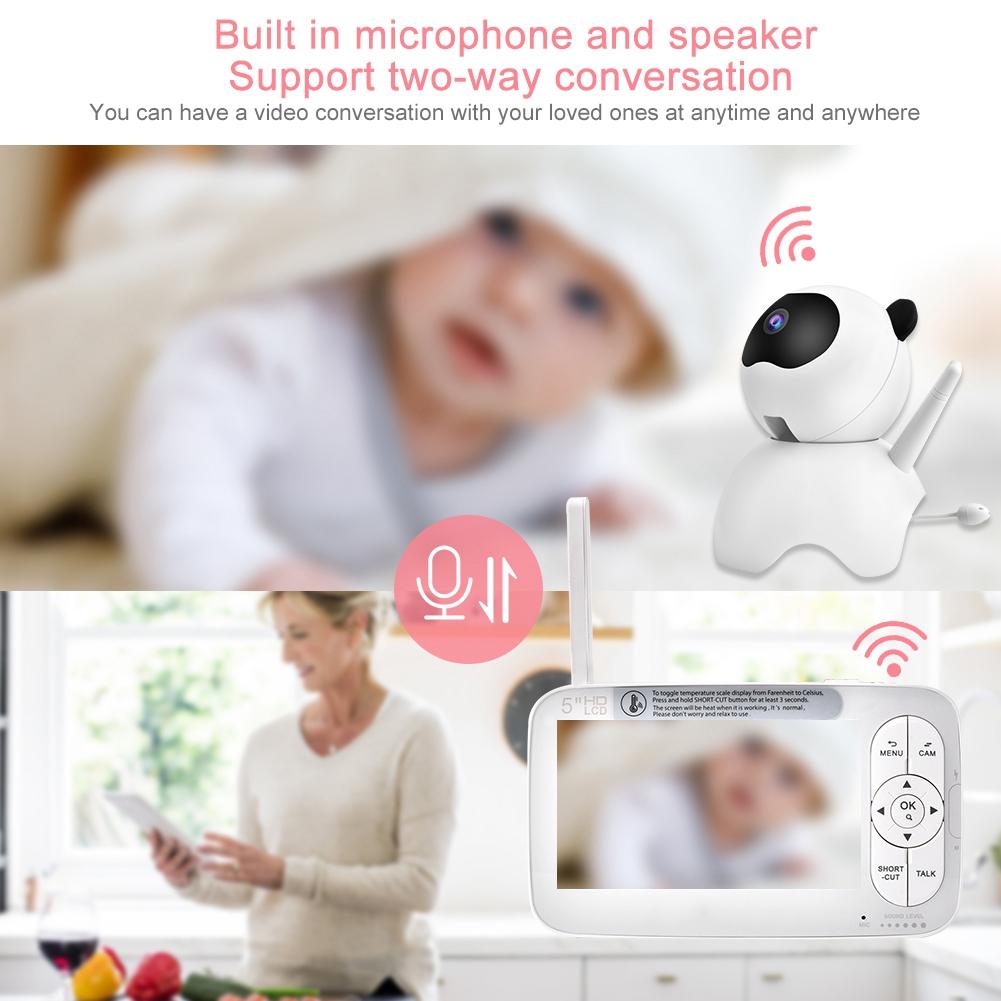

The image and sound are transmitted farther. There are some interferences in the residential area. The image and sound transmission distance is up to 150-270M. The indoor image and sound transmission distance can reach 100ft (30m) through the 3-4 barrier wall, and the wooden room can be farther away. Support two-way voice real-time transmission.

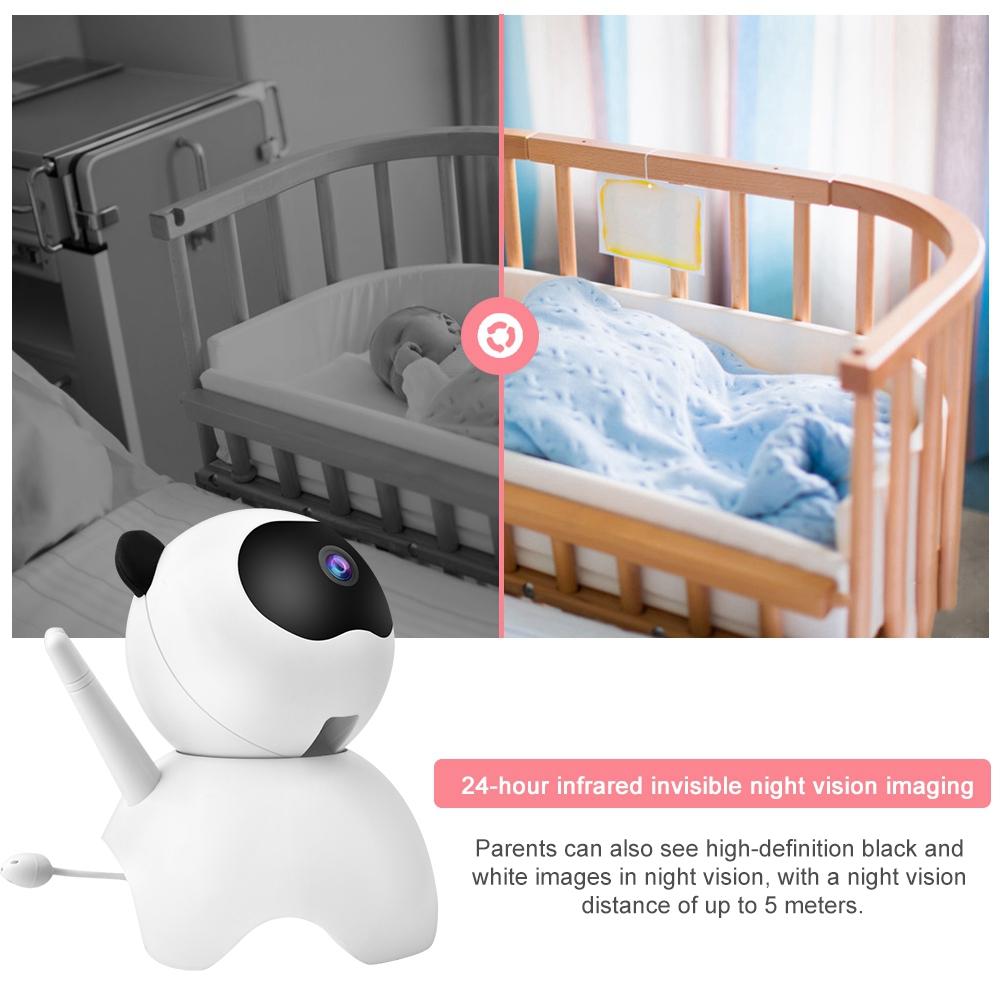

24-hour infrared invisible night vision imaging. Using 940nm infrared light, 30 ft (1m) can not see infrared light, effectively protect your baby"s eyes, eliminate the infrared light source, let the baby sleep peacefully, parents can also see high-definition black and white images in night vision environment, night vision distance is long 5 meters.
A variety of alarm reminders to keep your baby safe and worry-free.
The camera has a sound detection function, the baby emits a sound alarm, a crying alarm, a video signal interruption alarm, a low battery alarm, can light the sleep receiver, and the indicator light flashes and emits a beep sound, the sound alarm sensitivity can be set, the receiver The sound size can be set.
The receiver has a built-in 2000 mAh lithium battery, which complies with the 62133 certificate. The receiver supports the power saving mode with automatic sleep function. The sleep time is four gears: 5 minutes, 30 minutes, 60 minutes, off, and the battery can be used when the screen is off. 4 hours or so. When the LCD is asleep, if there is sound at the camera end, the receiver can be detected and illuminated.
The camera comes with a lullaby, and the baby sleeps peacefully. The receiver can remotely set the camera to play the lullaby, and up to 5 have stored the lullaby.
The camera comes with a temperature sensor that automatically senses the temperature of the baby"s room and alarms.
The receiver has a temperature display function that displays the temperature data transmitted by the camera wirelessly. It can switch between Celsius and Fahrenheit, and does not alarm at 590F to 840F (15C0 to 29C0). If the temperature alarm button is turned on, the receiver will sound an alarm below or above the above range.
Up to four cameras can be configured in one receiver. By adding and deleting cameras through the code mode, one receiver can access up to four cameras and use round-robin playback. Restoring the factory settings requires re-adding the camera.
Note:
Please charge the display before using it for the first time.
Specifications:
Condition: Brand New
Material: ABS
Color: Shown as picture
Packing size: Approx.18*17.5*12cm/7.1*6.9*4.7in
Weight: Approx.1044g/36.8oz
Wireless Digital Camera
Image Sensor: 1/4-inch CMOS H62
Camera resolution: 1280*720
Viewing angle: 70 degrees (horizontal test)
Minimum illumination: >5 (IR OFF) / <0 (IR ON)
IR Range: 5 meters
Video resolution: 1280 x 720P/25fps
Video bit rate: 32kbps-8Mbps
Audio compression method: PCM
Audio transmission method: Two-way voice intercom (Half Duplex)
Sound sensitivity: -47dBm
Alarm method: Voice detection
Wireless transmission mode: 2.4GHz (5G is not supported)
Transmission Range: 500ft in residential area
Power supply: 5V 1.5A
Working current: 400 (max)
Receiver:
Screen Description: High-definition screen, fine quality
Resolution: 720*1280
Video input: support 1 way
Audio input: built-in microphone
Interface:
1 DC power interface
1 power switch
1 menu button
1 left and right arrow keys
1 confirmation button
1 shortcut key
1 Intercom key
1 split screen button
Power Supply: 5V 1.5A
Working current: 500 (max)
Built-in lithium battery: 2000mAh
General
Operating Temperature: TBD
Storage Temperature: -20o ~ +60o
Operation Humidity: 15percent ~85percent
Package List:
1 * Camera (Built-in Battery)
1 * 5-inch LCD Screen
2 * Connection Line
2 * Charging Head
1 * Screw Package
1 * Bracket
1 * Manual
