Features:
1. Supports S7-200/300/400 PLC communication;
2. Supports PPI/MPI communication;
3. Install the adapter without generating a serial number; simply select USB;
4. The cable supports computer systems XP, WIN7 32-bit, etc.;
5. Equipped with a resettable PTC fuse, providing robust protection against overvoltage, overcurrent, and short circuits;
Description:

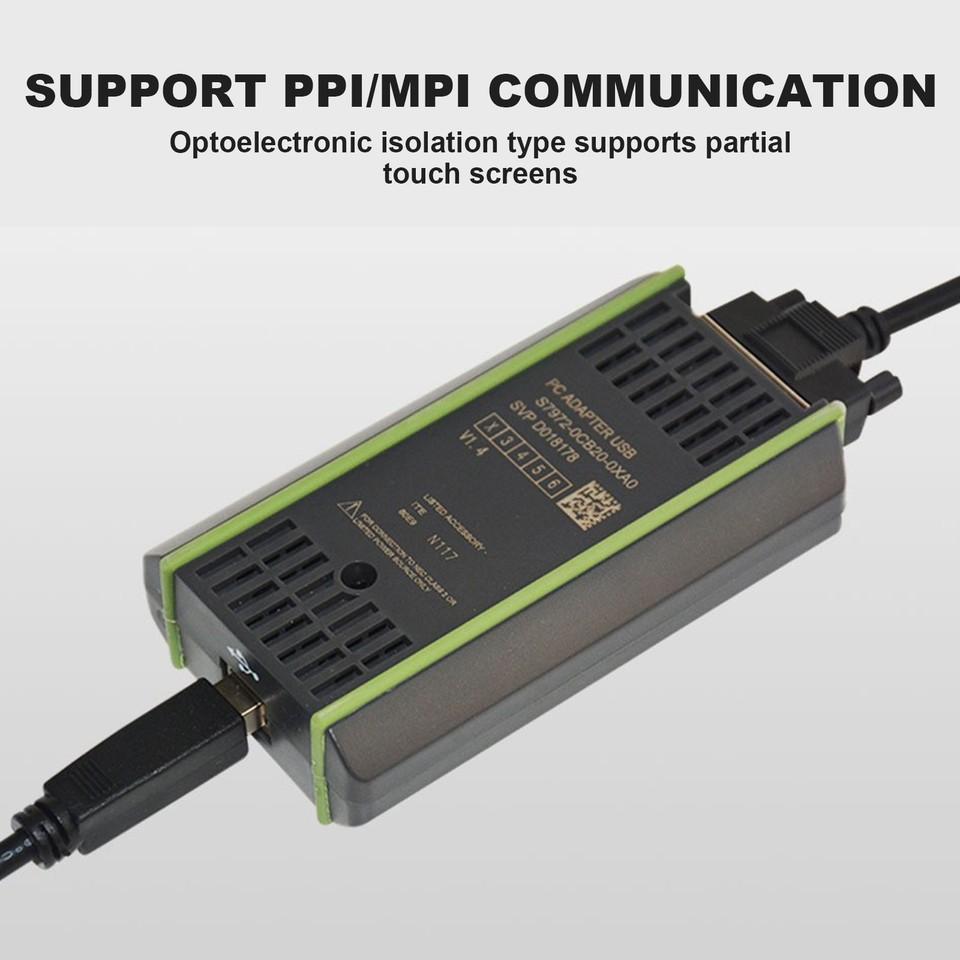

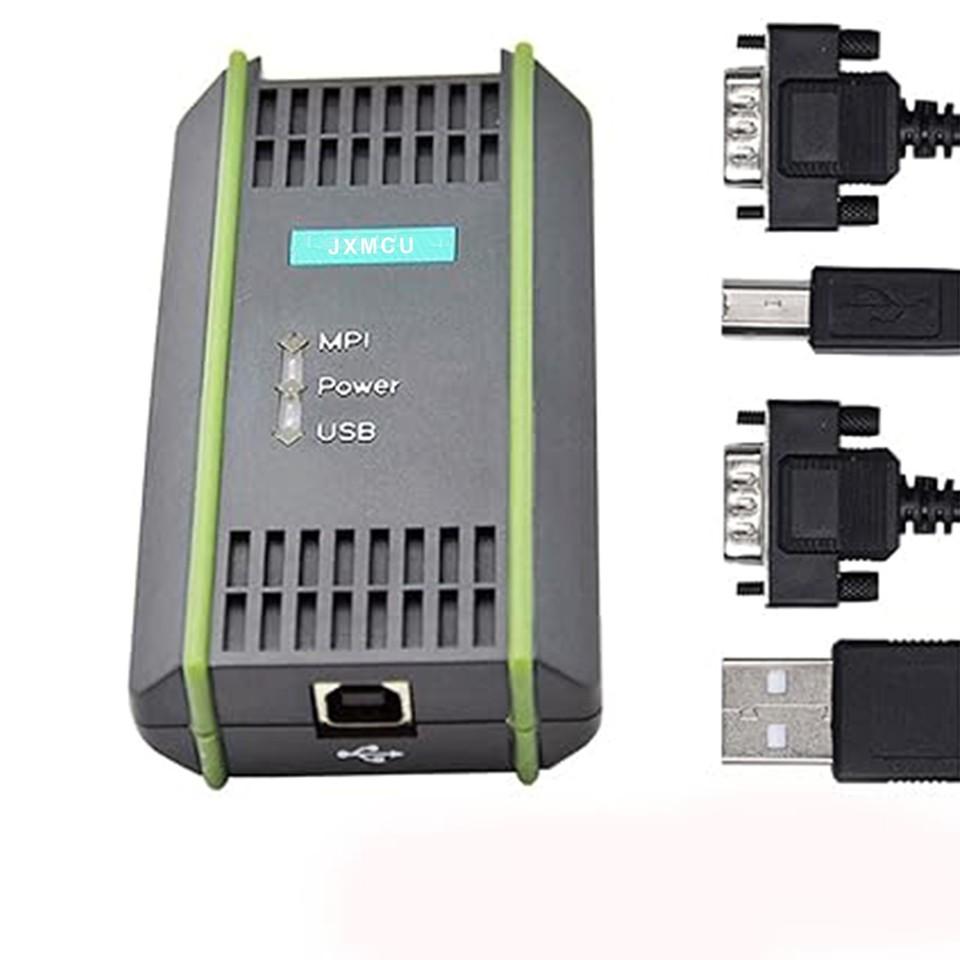

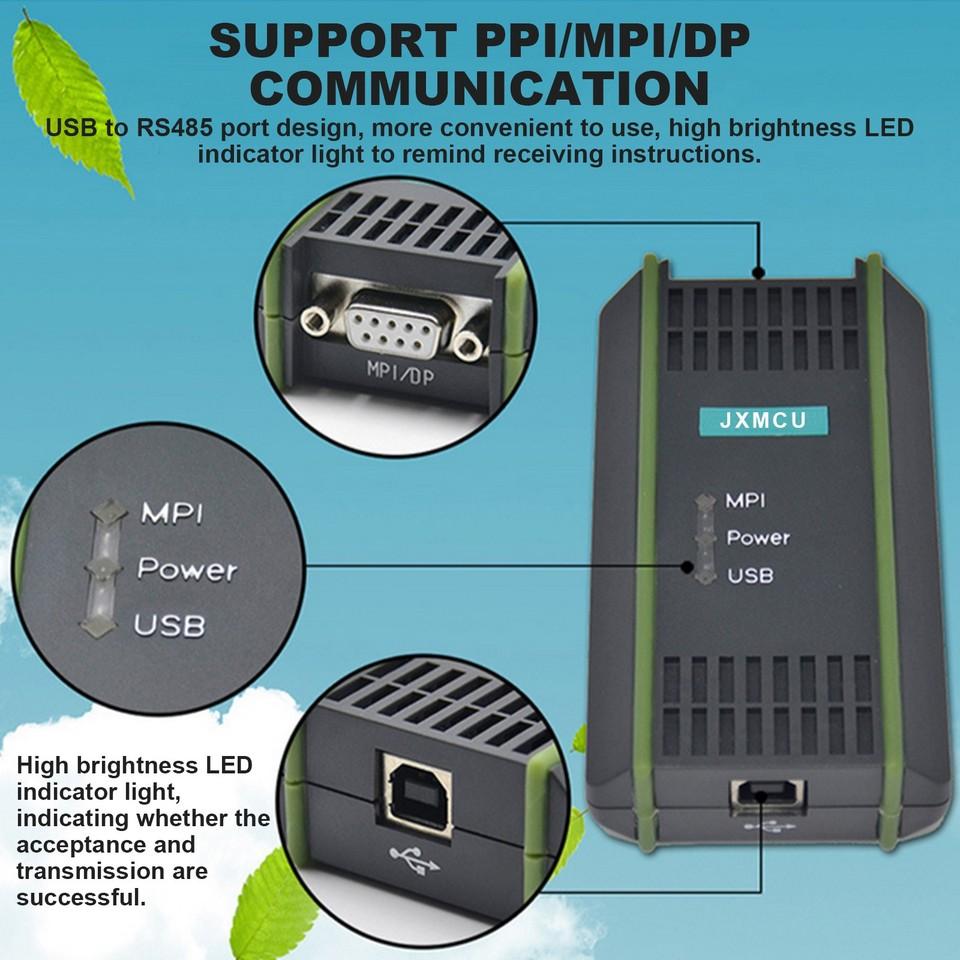

This USB PC adapter is an optoelectronic isolation adapter designed for industrial use. It provides surge and lightning protection for both the USB and RS485 interfaces. The 7972-0CB20-OXAO is an optical isolator for industrial design with USB and RS485 ports. It features surge and lightning protection circuitry for Siemens S7-300/400 and S7-200 series PLCs. It is particularly suitable for sensitive industrial field communication connections, providing a variety of protective measures to ensure safe system operation.
Photoelectric isolator:
This device is also known as a photocoupler or short-circuit optocoupler. Optical couplers use light as a medium for transmitting electrical signals. It provides excellent isolation of input and output signals. The main advantages of optocouplers are: unidirectional signal transmission, electrical isolation at the input and output ends, no interference from the output signal at the input end, strong interference suppression, and stable operation.
Features and technical specifications:
Software version STEP7 V5.2 and higher, STEP7 Micro/Win 4.0 and higher. MPI baud rate: 19.2 Kbps, 187.5 Kbps; PPI baud rate: 9.6 Kbps, 19.2 Kbps, 187.5 Kbps. The MPI port automatically adjusts to the communication rate of 19.2 Kbps, 187.5 Kbps, 500 Kbps, and 1.5 M Kbps DP master communication.
Operating temperature:
-20 to +75 °C; long-distance communication; communication range: 1000 m (RS485 end when the baud rate is 187.5 Kbps).
Specifications:
Material: pure copper
Color: black
Input: 5.4 V
Output current: 1.5 A
Quantity: 4 pieces

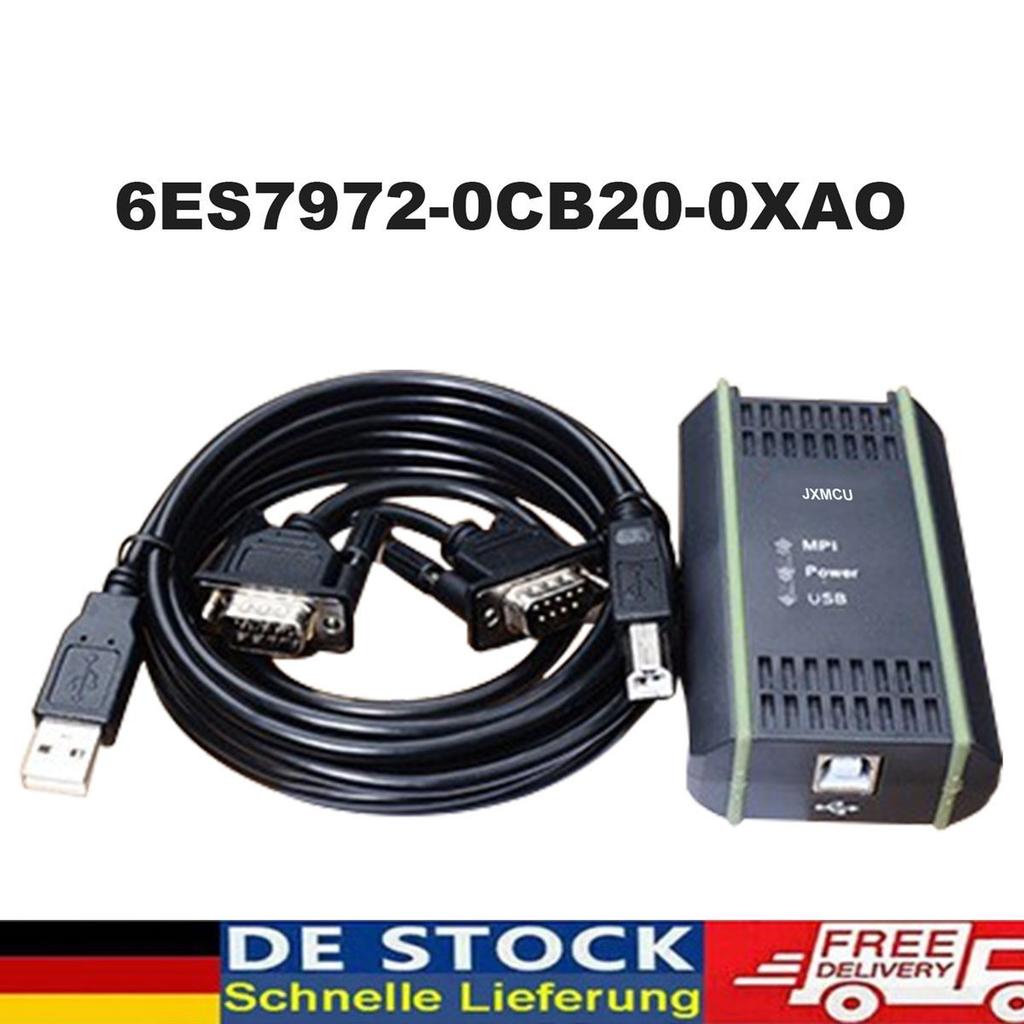

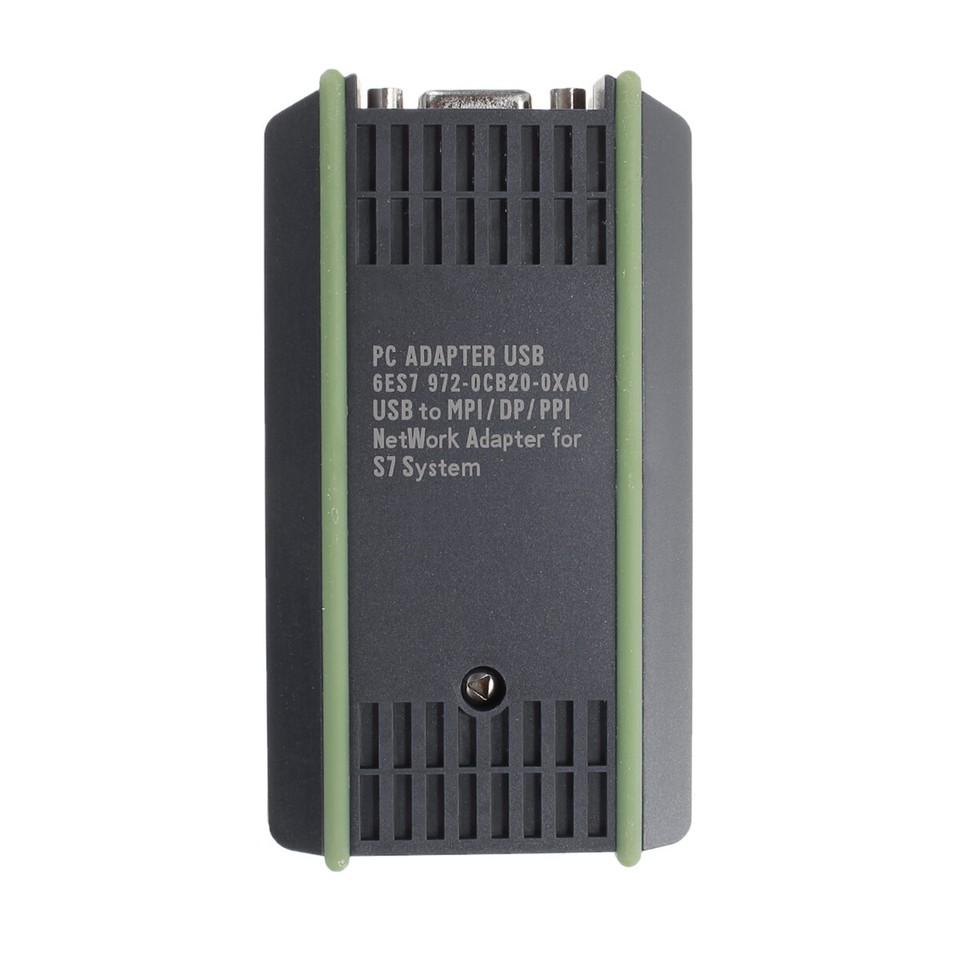

Model: 0CB20 compatible (6ES7 972-0CB20-0XA0)

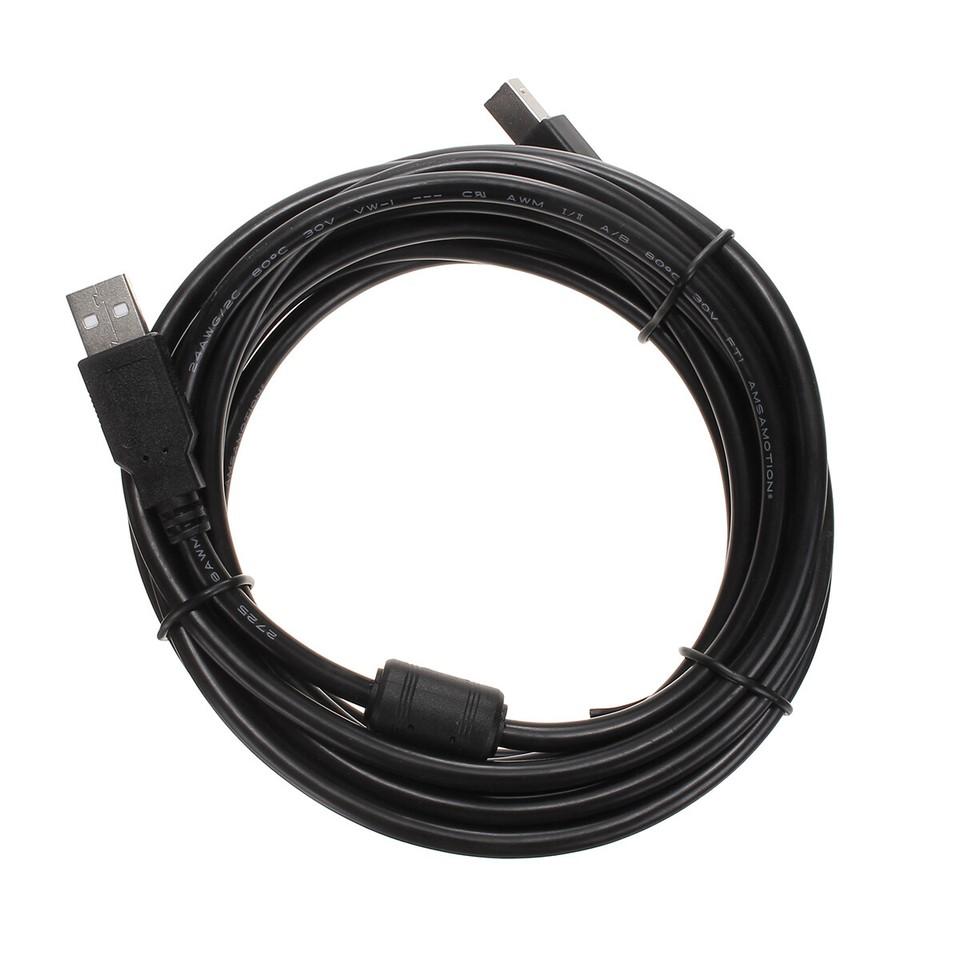

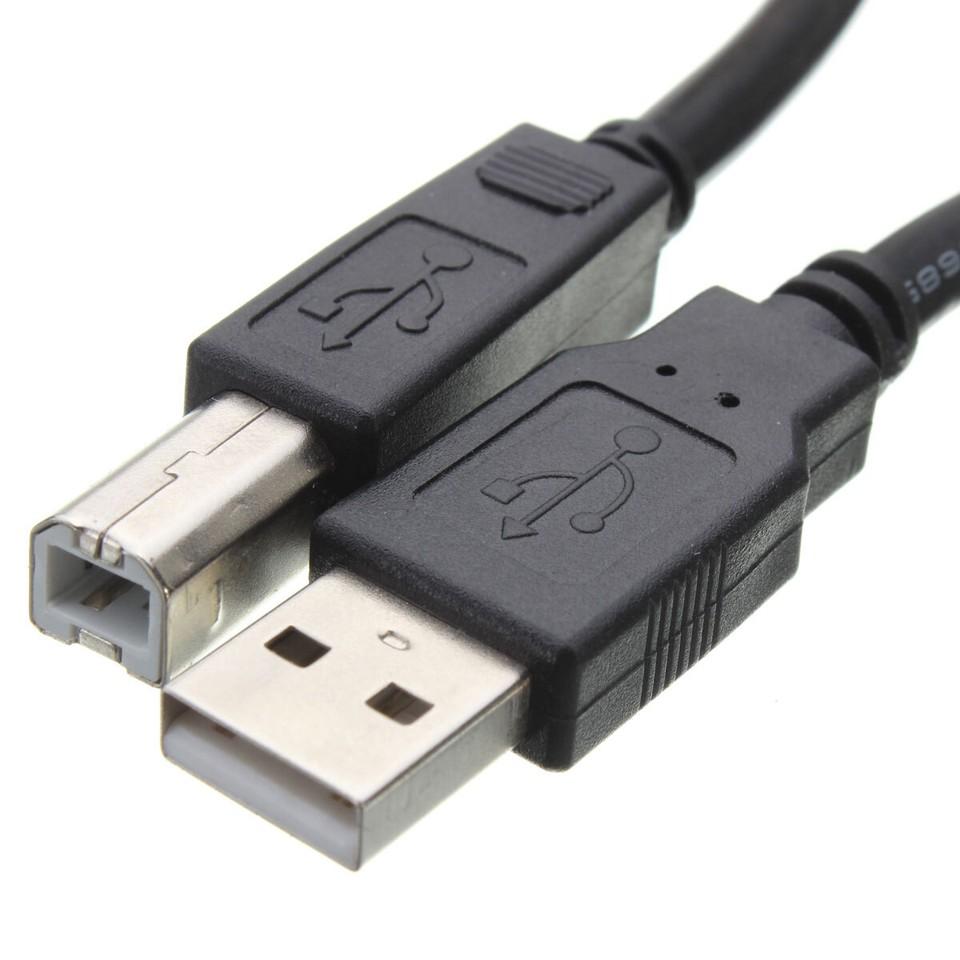

Length: approx. 3 m. Interface: USB 9-pin connector.
System: Fully compatible with Windows XP, Windows 7, and Vista.

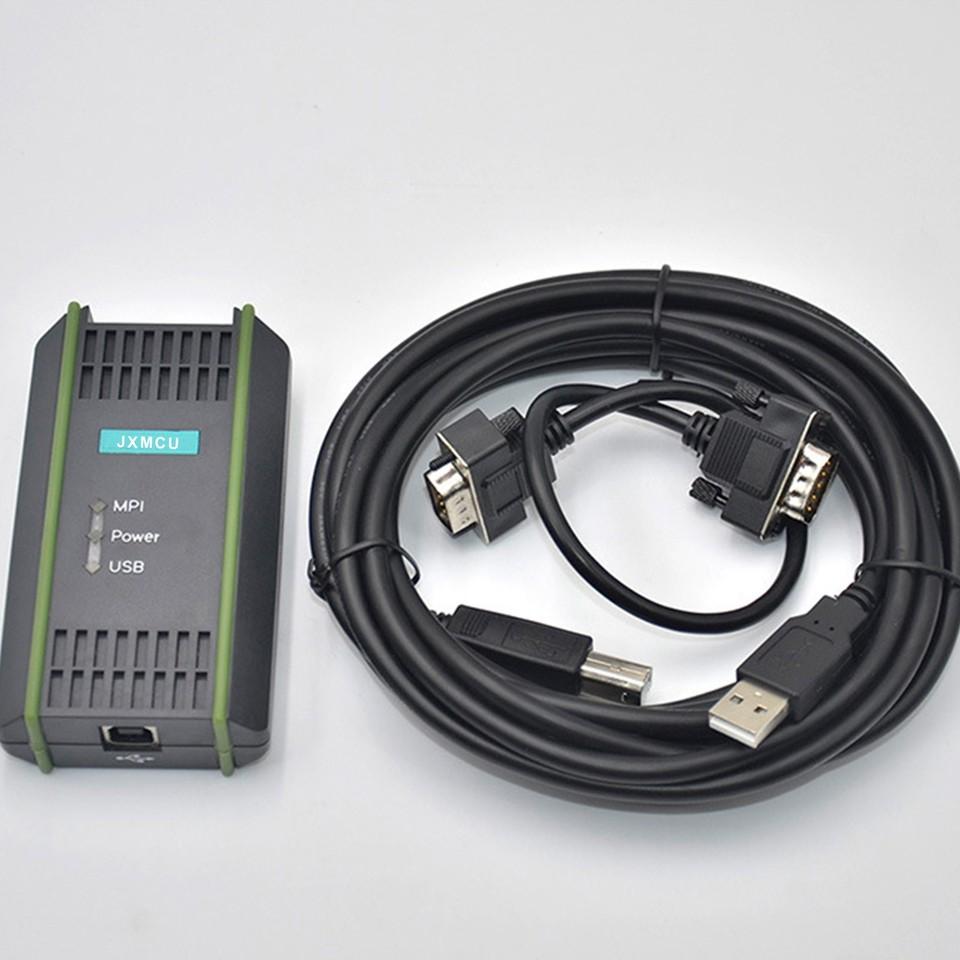

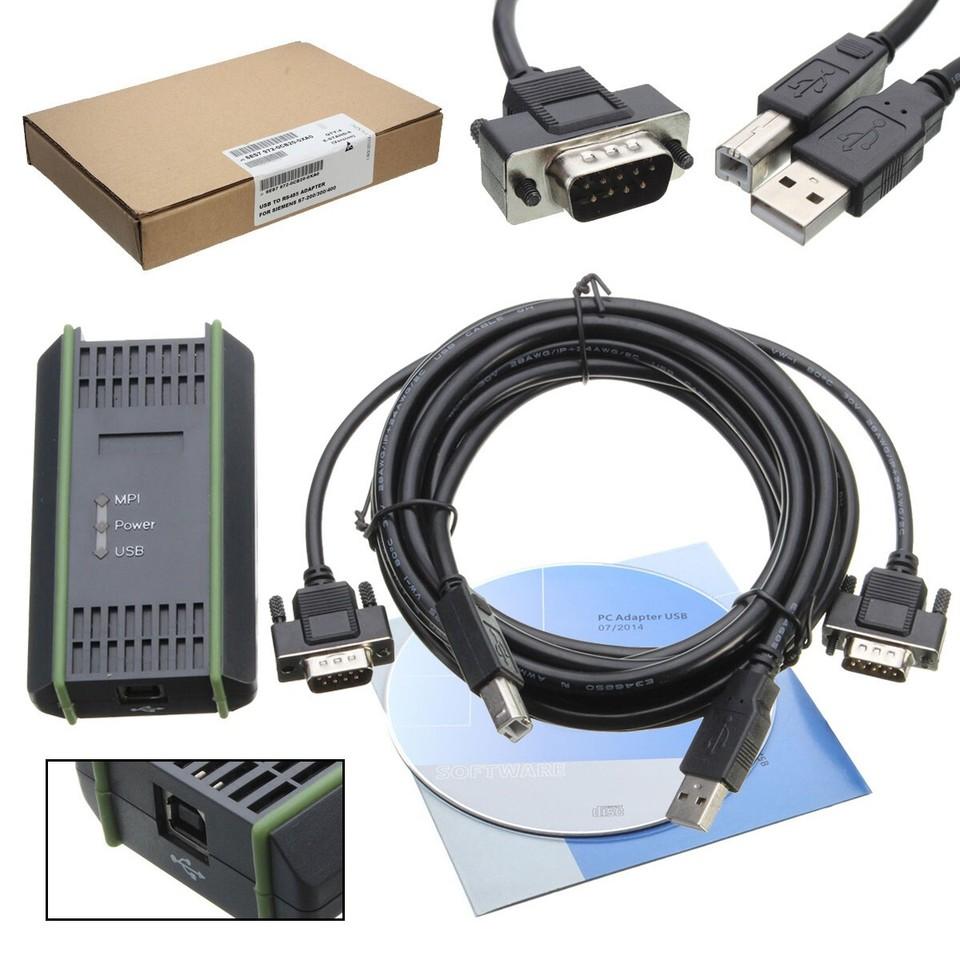

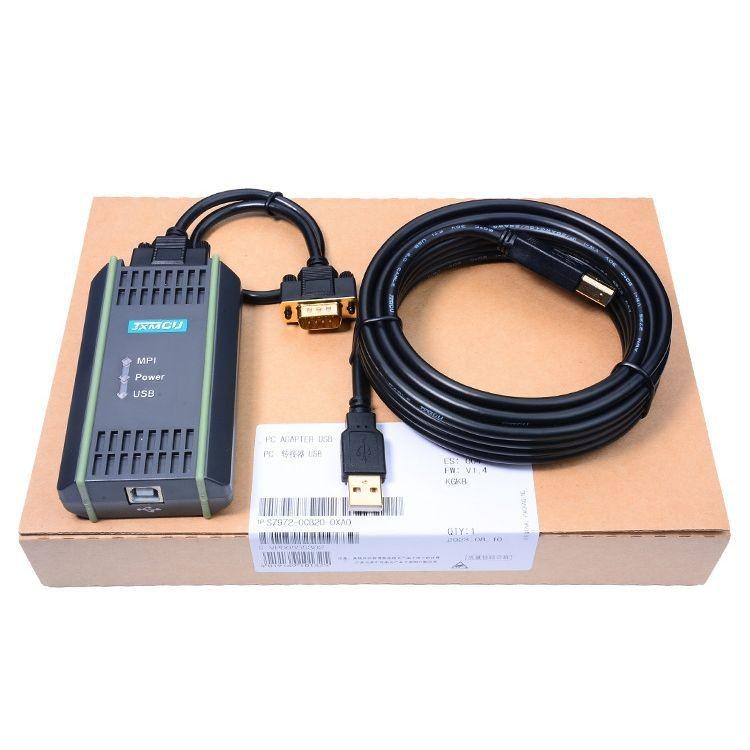

Complete set: Packaging box + adapter + standard wiring.
Purpose: Supports PPI/MP and DP multi-master communication, used with Siemens S7200/300/400 and Siemens Department Touch (TP170/177/270, OP25/35/77, MP177/270/277B, etc.).

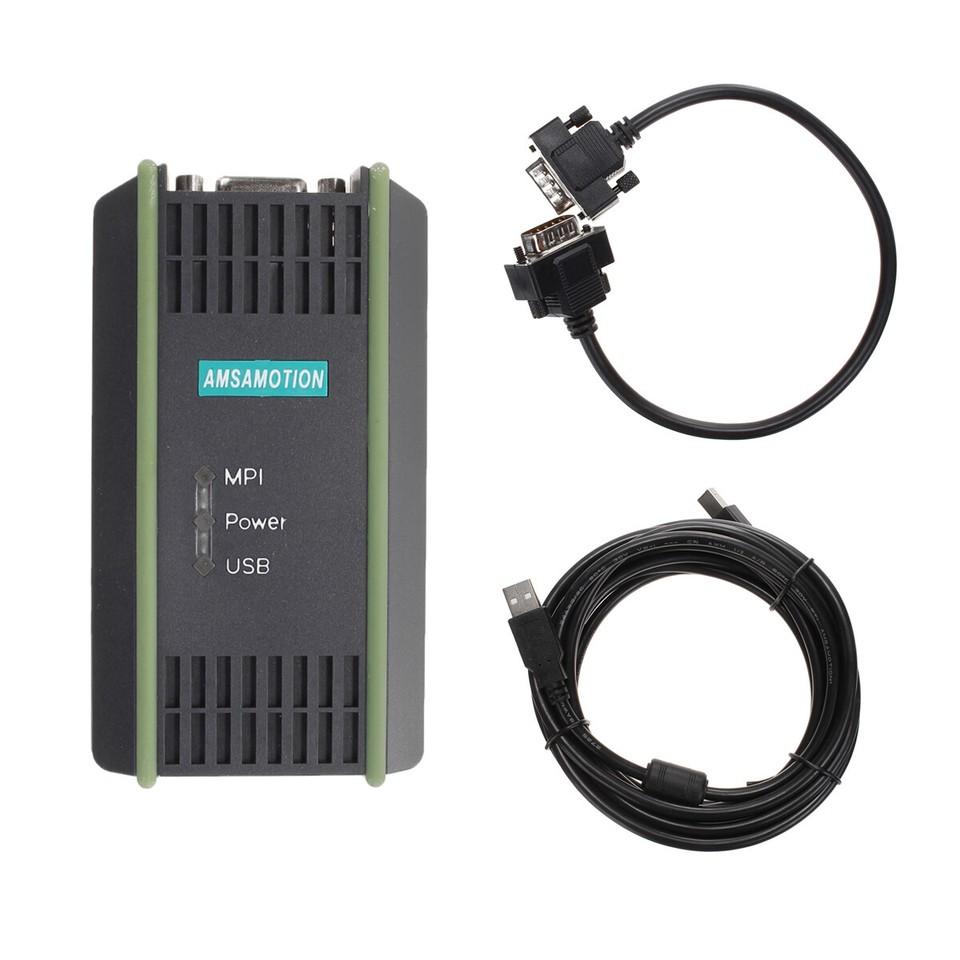

Package Includes:
1 x Box
1 x 3m Power Cable

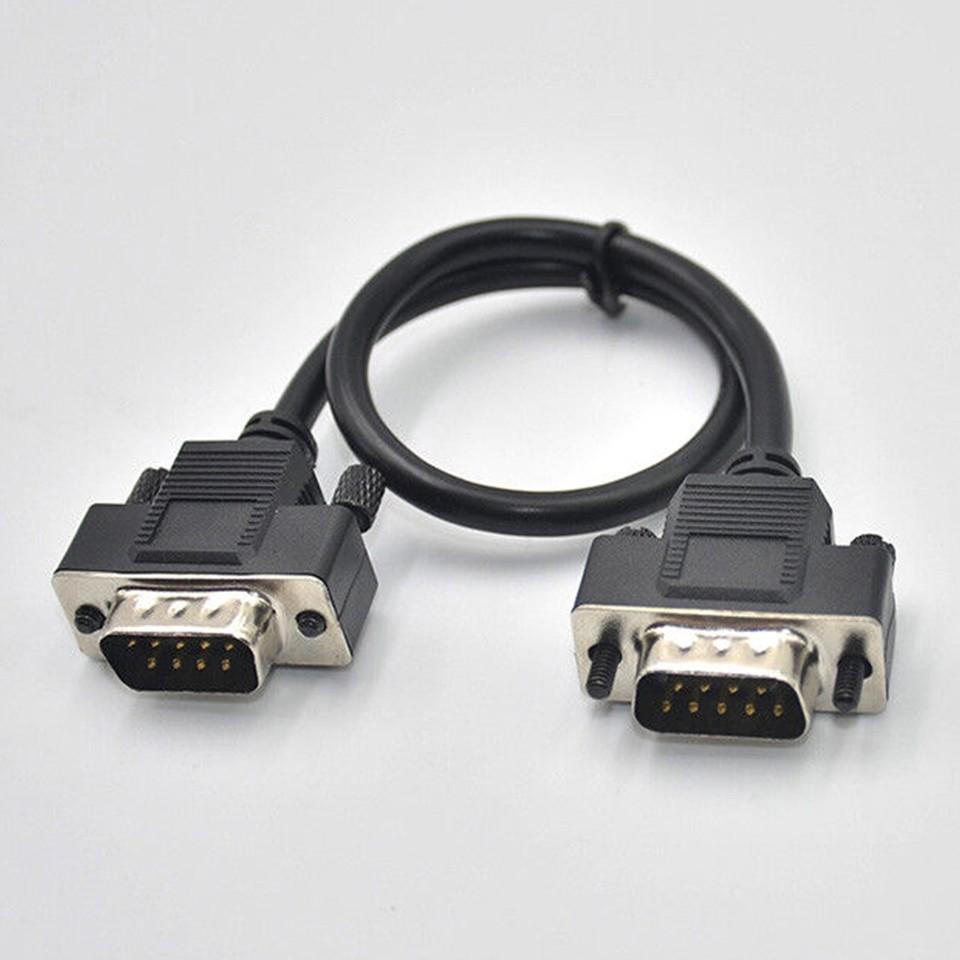

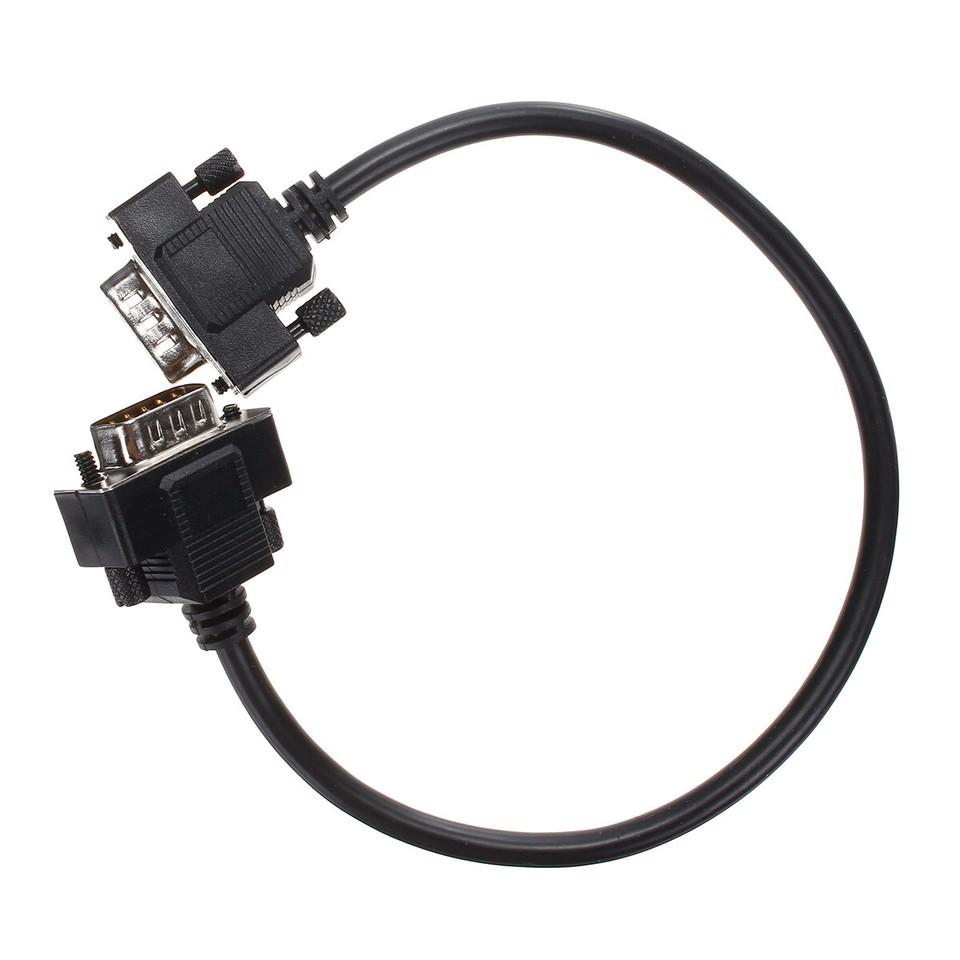

1 x Interface Cable.
