DH series is a single output CNC DC switch power supply. It is characterized by high output power and compact size. In addition, the DH series can be equipped with an RS232 communication interface and supports SCPI communication protocol and Modbus communication protocol. Enabling the DH series to connect with other devices and support user to conduct secondary development.
Regardless of your design and testing needs, the DH series are able to provide versatile solutions.
Features:

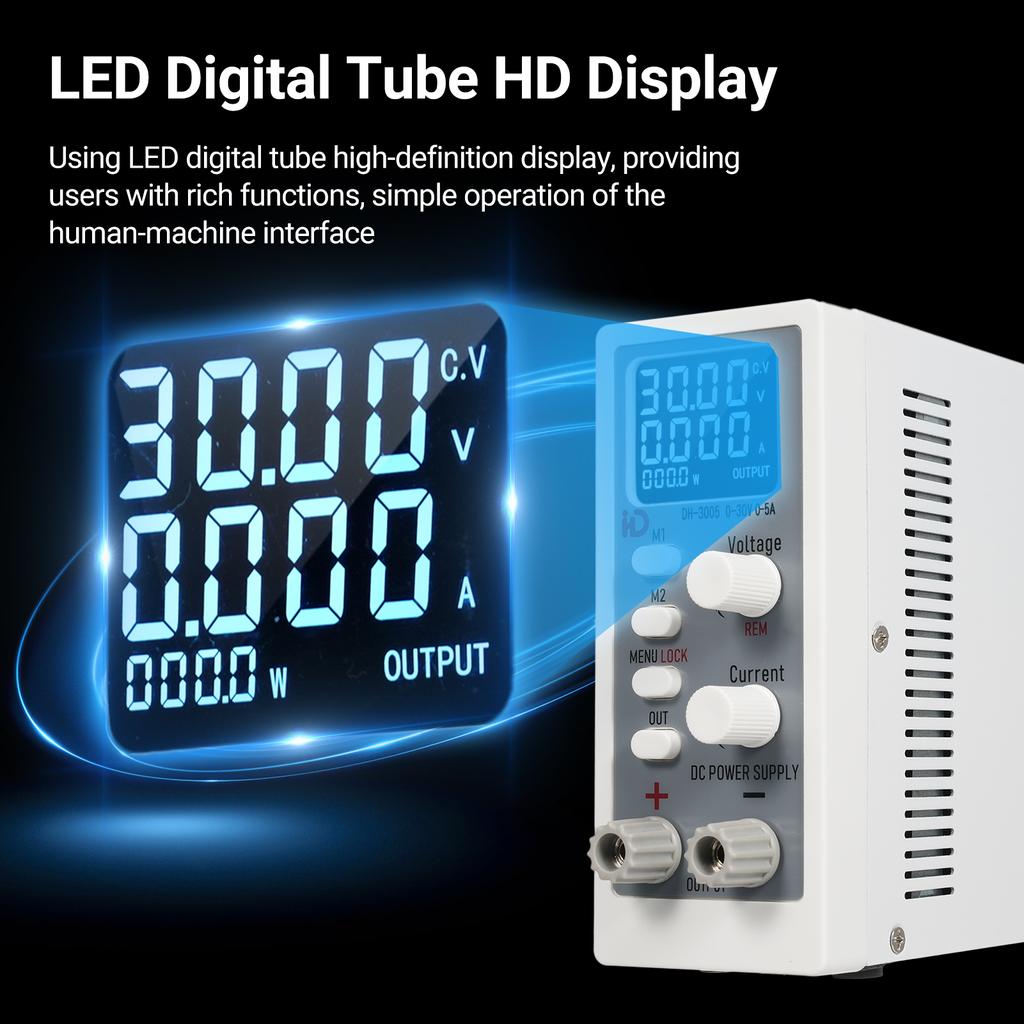

LED Digital Tube HD Display: Using LED digital tube high-definition display, providing users with rich functions, simple operation of the human-machine interface.
2 Groups of Data Storage Function: With two groups of data storage function, "M1-M2" a key storage call, easy to operate.
Various Protection Functions: DH series provides over-temperature (OTP) over-voltage (OVP) over-current (OCP) reverse polarity protection, can be set through the panel or the host computer operation of the power supply output over-temperatureover-voltageover-current protection point.
Compact Size: Small size does not take up space, go out more easily to carry, to solve the problem of traveling to occupy space.

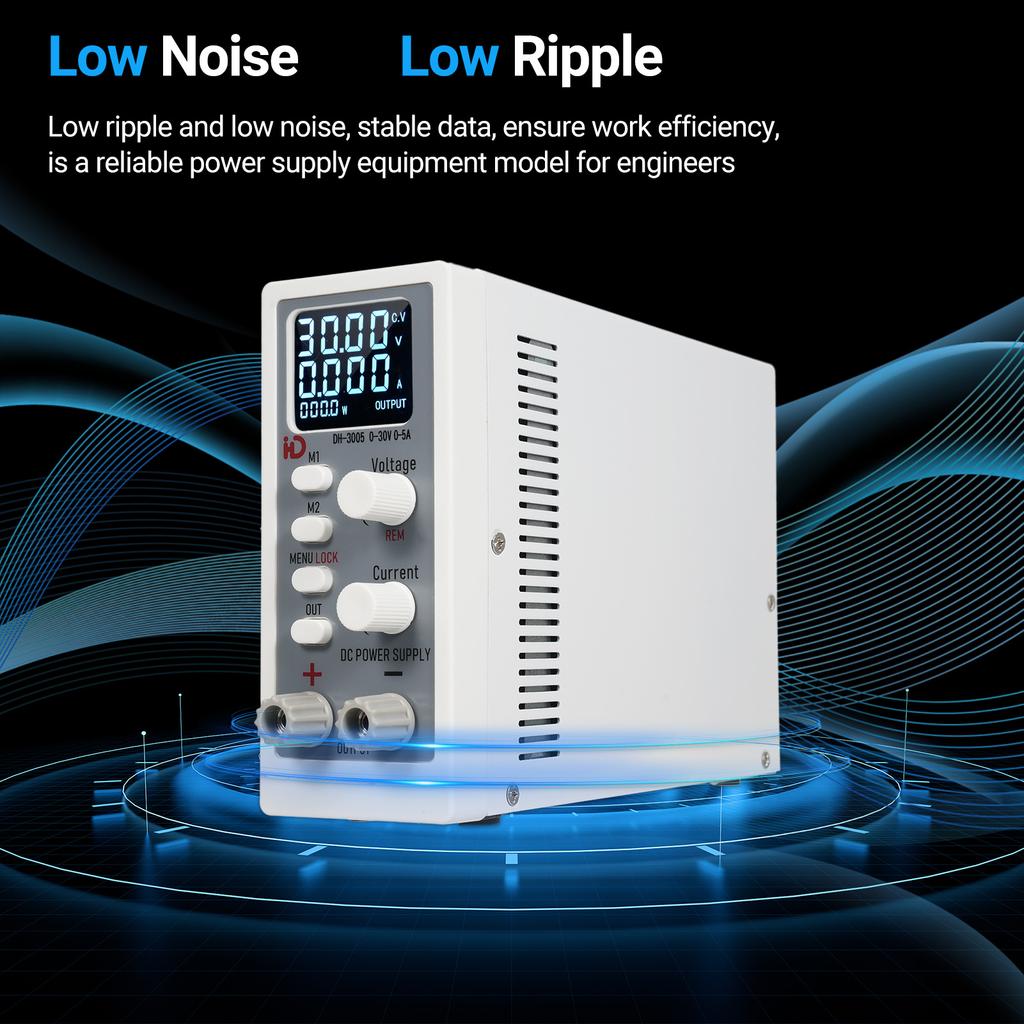

Low Noise and Ripple: Low ripple and low noise, stable data, ensure work efficiency, is a reliable power supply equipment model for engineers.
Wide Range of Applications: Used in the field of testing, aging, LED drive, industrial control, solar regulation, battery charging, etc.
Specifications:
Plug: EU US UK (Optional)
Material: ABS
Model: DH-3005
AC Input: Signal phase 220V110V +-10percent
Frequency 50Hz60Hz
Output Voltage: 0-30V
Current Output: 0-5A
Output Power: 150W
Power Supply Stability: less than 0.02percent +5mV
Load Stability Ratio: less than 0.1percent +5mV
Ripplerms (1-20KHz): 5mVrms
Backward Resolution Ratio: Voltage 10mV
Current 1mA
Read Back Precision: Voltage 0.1percent +3 digital
Current 0.1percent +3 digital
Setpoint Accuracy: 0.1percent +3 digital
Output Over-voltage Protection: Menu Setting for OVP Protection: The protective value can be set arbitrarily. After protection is triggered, the output will be turned off.
Output Over-current Protection: Menu Setting for OCP Protection: The protective value can be set arbitrarily. After protection is triggered, the output will be turned off.

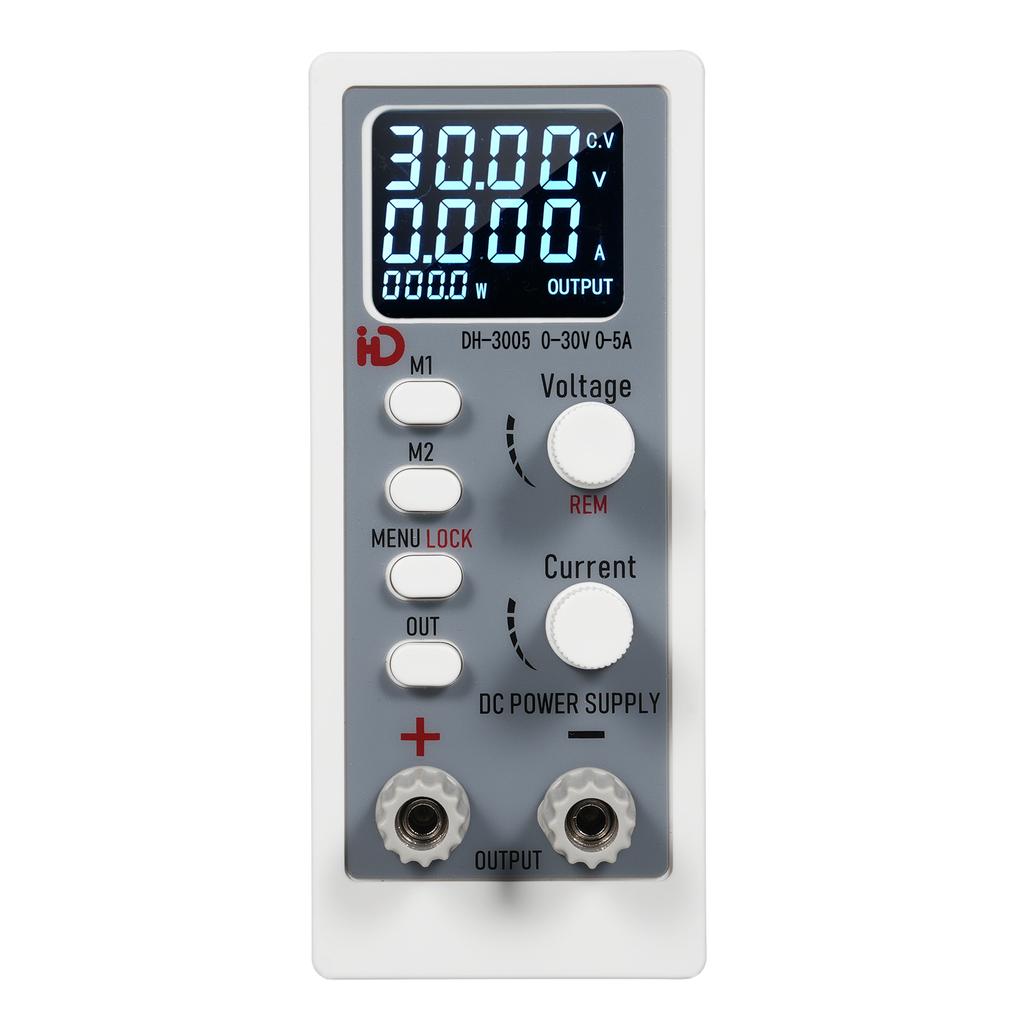

Voltage Setting: Voltage encoder setting or memory key input
Current Setting: Current encoder setting or memory key input
Control Interface (Optional): RS-232 (Support modbus & SCPI Protocol)
Function: Constant VoltageConstant Current; Foldback Current Protection; Dual Preset Voltage and Current; Key Lock
Output Polarity: The positive (+) and negative (-) outputs can be grounded arbitrarily
Heat-Dissipating Method: Intelligent air-cooled (variable speed)
Operating Environment: Designed for indoor use, temperature: 0 celsius to 40 celsius ; humidity: 10 to 85 per cent RH
Storage Environment: temperature: -20 celsius ~70 celsius ; humidity: 10percent ~90percent RH
Item Size: 186 * 54 * 125mm 7.32 * 2.12 * 4.92in
Item Weight: 961g 2.11lb
Package Weight: 1315g 2.89lb
Package Size: 25 * 21 * 9cm 9.84 * 8.26 * 3.54in
Package List:
1 * DC Power Supply
1 * Power Cord
1 * Alligator Clip Lead
1 * User Manual (English)
